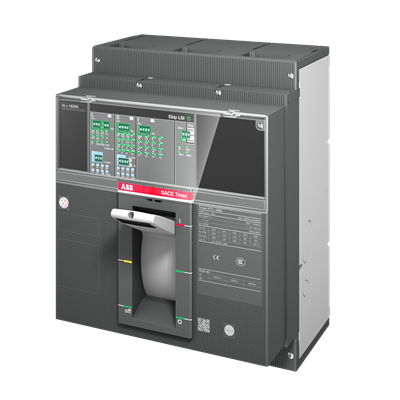

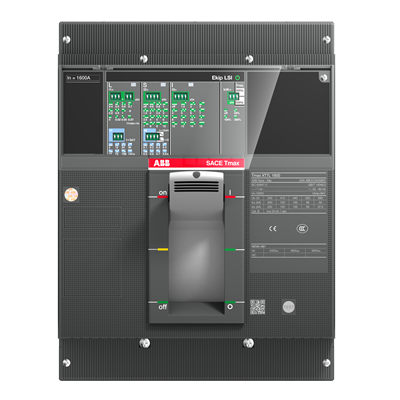

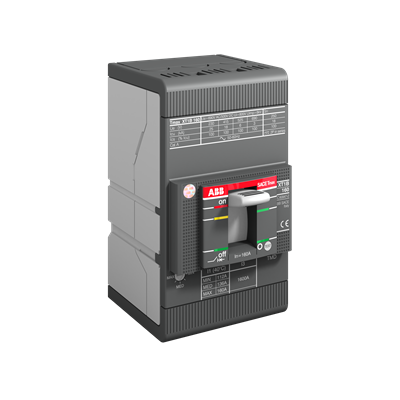

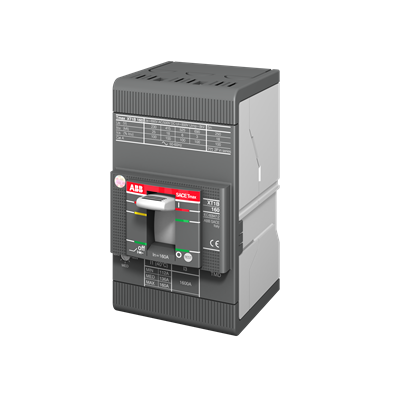

A Molded Case Circuit Breaker
(MCCB) is a crucial electrical protection device that safeguards electrical
circuits from various faults, primarily overloads and short circuits. It gets
its name from the molded insulating case (usually made of a thermoset composite
resin or glass polyester) that encloses and protects its internal components.
How MCCBs Work:
MCCBs operate on a combination of
thermal and magnetic principles to detect and interrupt fault currents:
- Thermal Protection (Overload): For gradual
overloads, the MCCB uses a bimetallic strip (a temperature-sensitive
device). When the current flowing through the MCCB exceeds its set limit
for an extended period, the bimetallic strip heats up and bends due to
different thermal expansion rates of the two metals. This bending action
triggers the tripping mechanism, disconnecting the circuit and preventing
damage from prolonged high currents. MCCBs often have a time delay for
thermal protection to allow for momentary inrush currents, like those seen
when starting motors.
- Magnetic Protection (Short Circuit): For
sudden, high short-circuit currents, the MCCB utilizes an electromagnetic
device (a solenoid coil). When a severe short circuit occurs, the large
fault current creates a strong electromagnetic field in the coil, which
instantaneously activates the tripping mechanism, quickly interrupting the
circuit.
- Manual Operation: MCCBs also have a manual
switch, allowing operators to turn the circuit on or off for maintenance
or safety purposes.
Key Features and
Characteristics:
- Adjustable Trip Settings: A significant
advantage of MCCBs is their adjustable trip settings. This allows users to
customize the breaker to different load requirements, making them highly
versatile for various applications. This adjustment can be for both
thermal (overload) and magnetic (short-circuit) protection.
- Current Ratings: MCCBs are available in a wide
range of current ratings, typically from 10 amps up to 2500 amps, making
them suitable for medium to high current applications.
- Breaking Capacity (Interrupting Rating): This
indicates the maximum fault current that the MCCB can safely interrupt
without being permanently damaged. A higher breaking capacity means a more
reliable circuit breaker.
- Durability and Reliability: The molded case
provides robust protection against environmental factors, contributing to
their longevity and reliable performance.
Applications:
MCCBs are widely used in various
settings, particularly where higher current ratings and adjustable protection
are required. Common applications include:
- Industrial Plants: Protecting heavy machinery,
motors, transformers, and industrial equipment.
- Commercial Buildings: Safeguarding electrical
panels, distribution boards, and systems for HVAC, lighting, and data
centers.
- Power Distribution Boards: Serving as main
protection devices in facility distribution boards.
- Generators: Protecting generators and their
associated circuits from faults.
- Welding Machinery: Handling the high currents
used in welding.
- Capacitor Banks: Used to correct power factor
in commercial and industrial systems.
- Renewable Energy Systems: Increasingly used in
large-scale solar (PV) systems for isolation and protection.
- Residential (Larger Homes/Multi-family Units):
Providing robust protection for main electrical panels or heavy-duty
appliances.
Advantages of MCCBs:
- Enhanced Protection: Provide reliable
protection against overloads, short circuits, and sometimes ground faults.
- Adjustability: Customizable trip settings
offer flexibility for various applications and load requirements.
- Durability: The molded case protects internal
components, leading to a longer lifespan and reliable operation.
- Compact Size: More compact than traditional
circuit breakers with similar current ratings, making them suitable for
space-limited installations.
- Easy to Reset: Can be easily reset after
tripping, unlike fuses which need replacement.
- Versatility: Applicable in a wide range of
residential, commercial, and industrial settings.
- Low Maintenance: Generally, require minimal
maintenance.
Leading MCCB Manufacturers:
Several reputable companies manufacture MCCBs, including:
- ABB
- Schneider Electric
- Siemens
- Mitsubishi
- Chint
- Hyundai
- LS Electric
- Terasaki
Overall, MCCBs are essential components in modern electrical
systems, providing critical protection and operational flexibility across
diverse applications.
