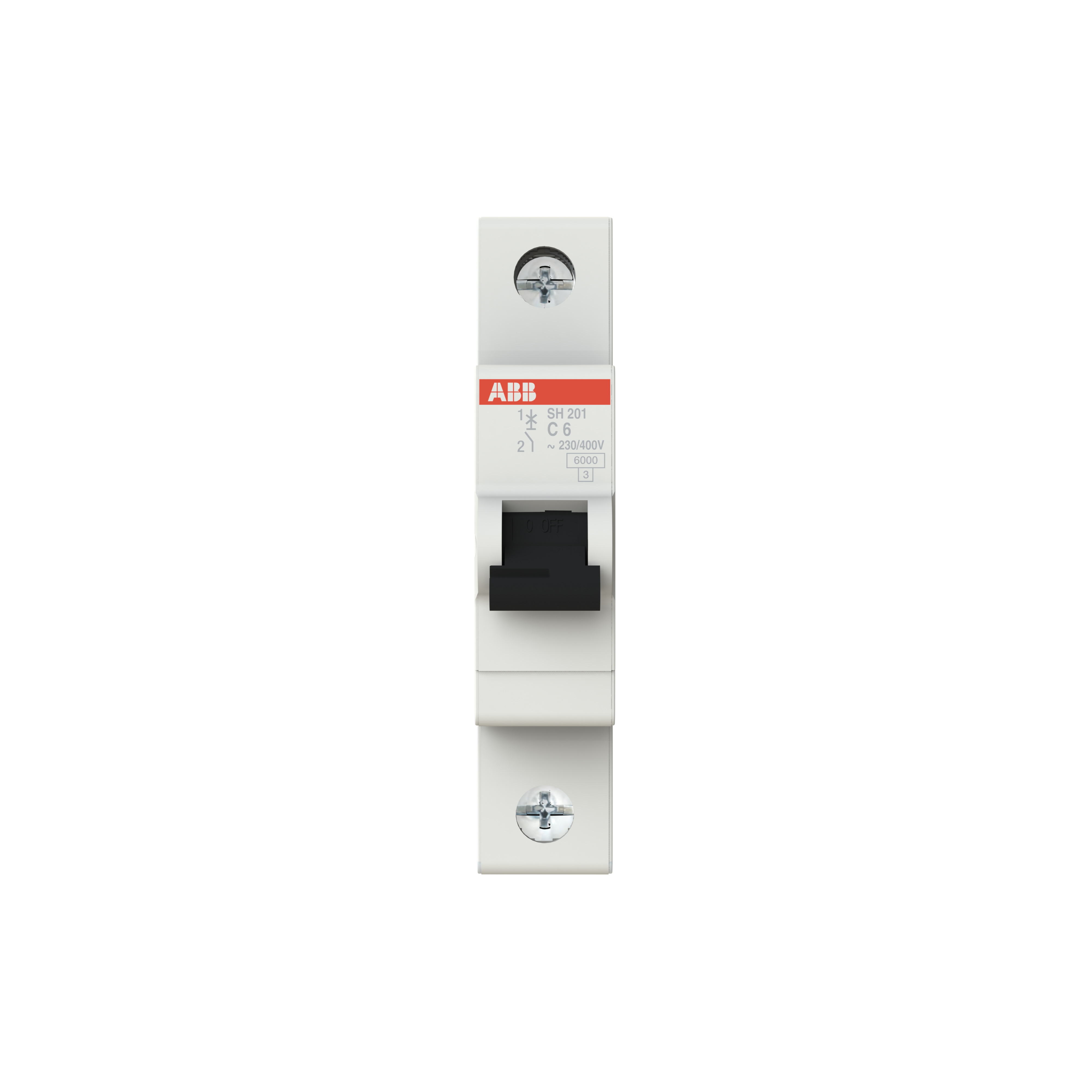

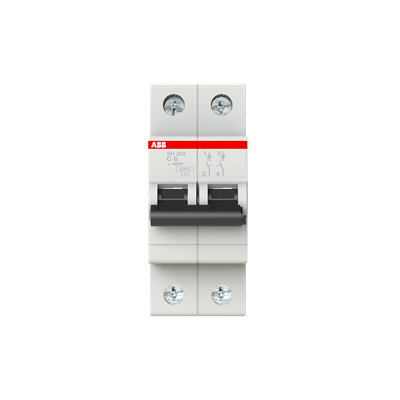

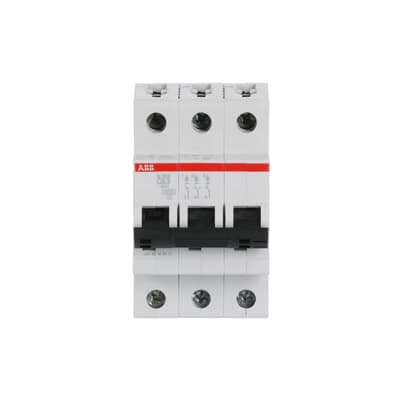

Miniature Circuit Breaker -MCB

A Miniature Circuit Breaker (MCB) is an automatically operated electrical switch designed to protect an electrical circuit from damage caused by overcurrent, which includes both overload and short circuit conditions. It's a crucial safety device in modern electrical installations.

How it Works:

MCBs incorporate two primary tripping mechanisms to detect and respond to different types of faults:

1.     Thermal Tripping (for Overload):

o    When a sustained, but not necessarily sudden, increase in current (an overload) occurs, the current flows through a bimetallic strip inside the MCB.

o    This strip heats up due to the resistance to the current flow.

o    As it heats, the bimetallic strip bends and deforms.

o    This bending action eventually triggers a mechanical latch, causing the MCB's contacts to open and interrupt the circuit.

o    This mechanism has a delayed response, which allows for small, temporary current fluctuations (like motor starting currents) without tripping.

2.     Magnetic Tripping (for Short Circuit):

o    In the event of a sudden, very large surge of current (a short circuit), the current flows through an electromagnet coil within the MCB.

o    This rapid and significant current surge creates a powerful magnetic field in the coil.

o    This magnetic field instantaneously pulls an iron plunger or armature.

o    The movement of this plunger directly and rapidly trips the mechanical latch, causing the MCB's contacts to open almost immediately.

o    This instantaneous response is vital to prevent severe damage to wiring and appliances and to mitigate fire hazards.

Once tripped, the MCB can be manually reset (by flipping its toggle switch back to the "ON" position) after the fault has been cleared.

Key Components:

• Operating Lever/Toggle Switch: Used to manually turn the circuit ON/OFF and to reset the MCB after it trips.
• Main Contacts: The points inside the MCB that close to allow current flow and open to break the circuit.
• Arc Chute: A series of metal plates designed to cool and extinguish the electrical arc that forms when the contacts open under fault conditions, preventing damage to the MCB and ensuring safe operation.
• Bimetallic Strip: The heat-sensitive component responsible for thermal tripping (overload protection).
• Electromagnet Coil: The coil responsible for magnetic tripping (short circuit protection).
• Latching Mechanism: The internal mechanical assembly that holds the contacts closed and releases them upon detection of a fault by either the bimetallic strip or the electromagnet.
• Terminal Connections: Where the electrical wires are connected to the MCB.
• Molded Case: The insulated housing that encloses and protects all the internal components.

Advantages over Fuses:

MCBs have largely superseded traditional fuses in modern electrical installations due to:

• Reusability: After a fault, an MCB can simply be reset, unlike a fuse which needs to be replaced. This saves time and cost.
• Enhanced Safety: They provide more precise and reliable protection against both overloads and short circuits. Their enclosed design also reduces the risk of electrical shock.
• Convenience: Easy to operate (ON/OFF switching) and clear indication of tripped status.
• Faster Fault Isolation: Quick to reset after the fault is cleared, minimizing downtime.

In essence, MCBs are indispensable components of any electrical system, playing a critical role in safeguarding electrical equipment, preventing fires, and ensuring personal safety by automatically disconnecting power during hazardous conditions.
