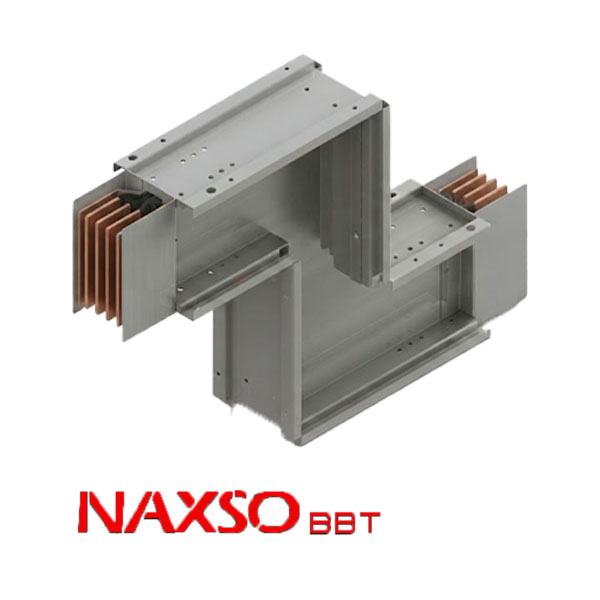

Flatwise Offset Busway ( 630A – 6300A )

• Price : POA
• Conductor : Copper / Aluminium
• Current Rate : 630A – 6300A (Copper), 500A – 6300A (Aluminium)
• Voltage Rate : Up to 1000V AC
• Frequency : 50 / 60 Hz
• Protection : IP42 (Standard), IP54 / IP65 (Optional)
• Standard Size :
• 630A–3200A : A = 350 mm, B = 350 mm
• 4000A : A = 400 mm, B = 400 mm
• 5000A–6300A : A = 500 mm, B = 500 mm
• Insulation Type : Air Insulated (Sandwich Type)
• Connection Type : Flatwise Offset
• Installation : Horizontal / Vertical
• Phase : 3 Phase
• Pole : 3P / 3P+N / 4P / 5P
• Brand : NAXSO
• Origin : Italy
